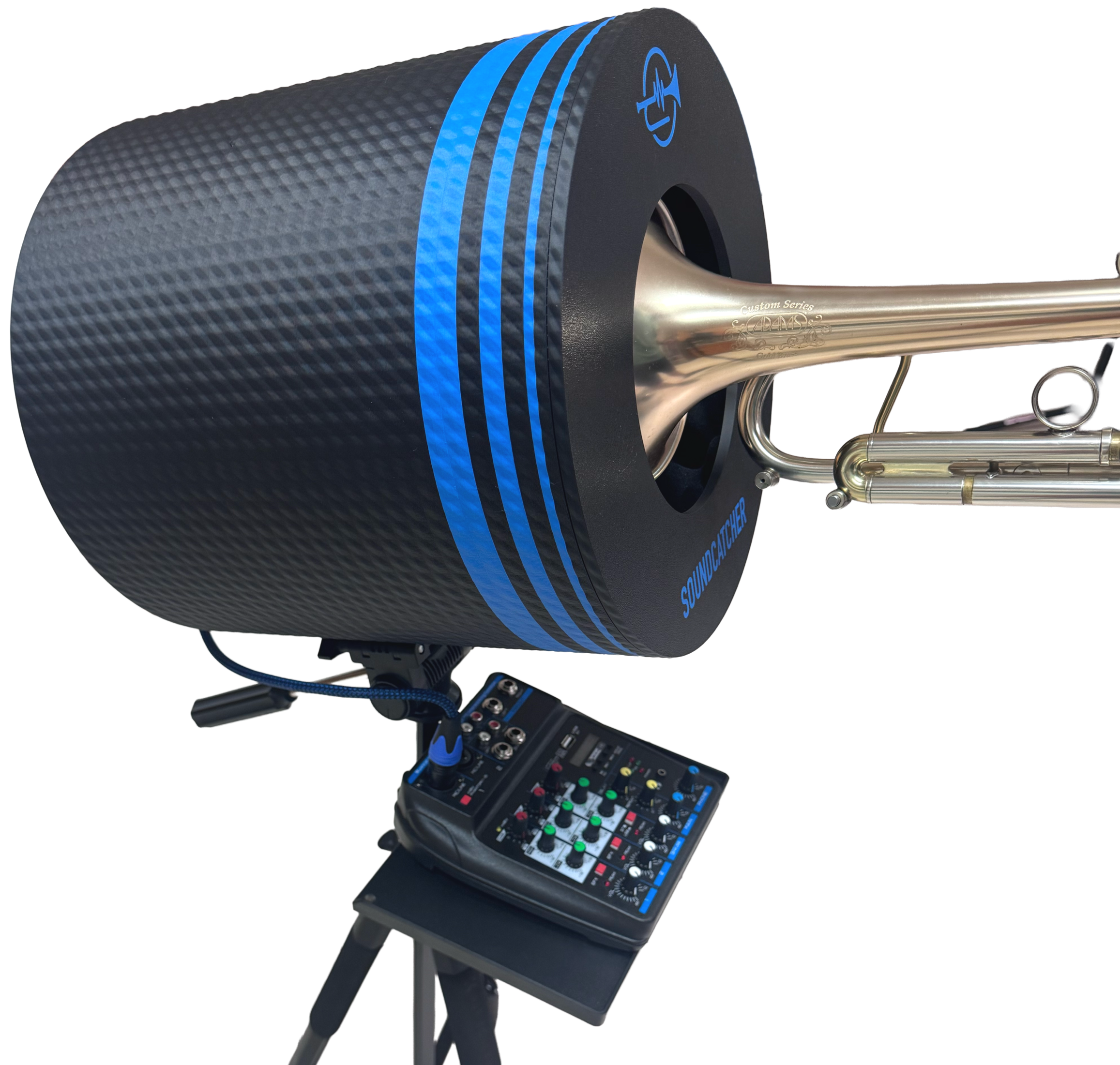

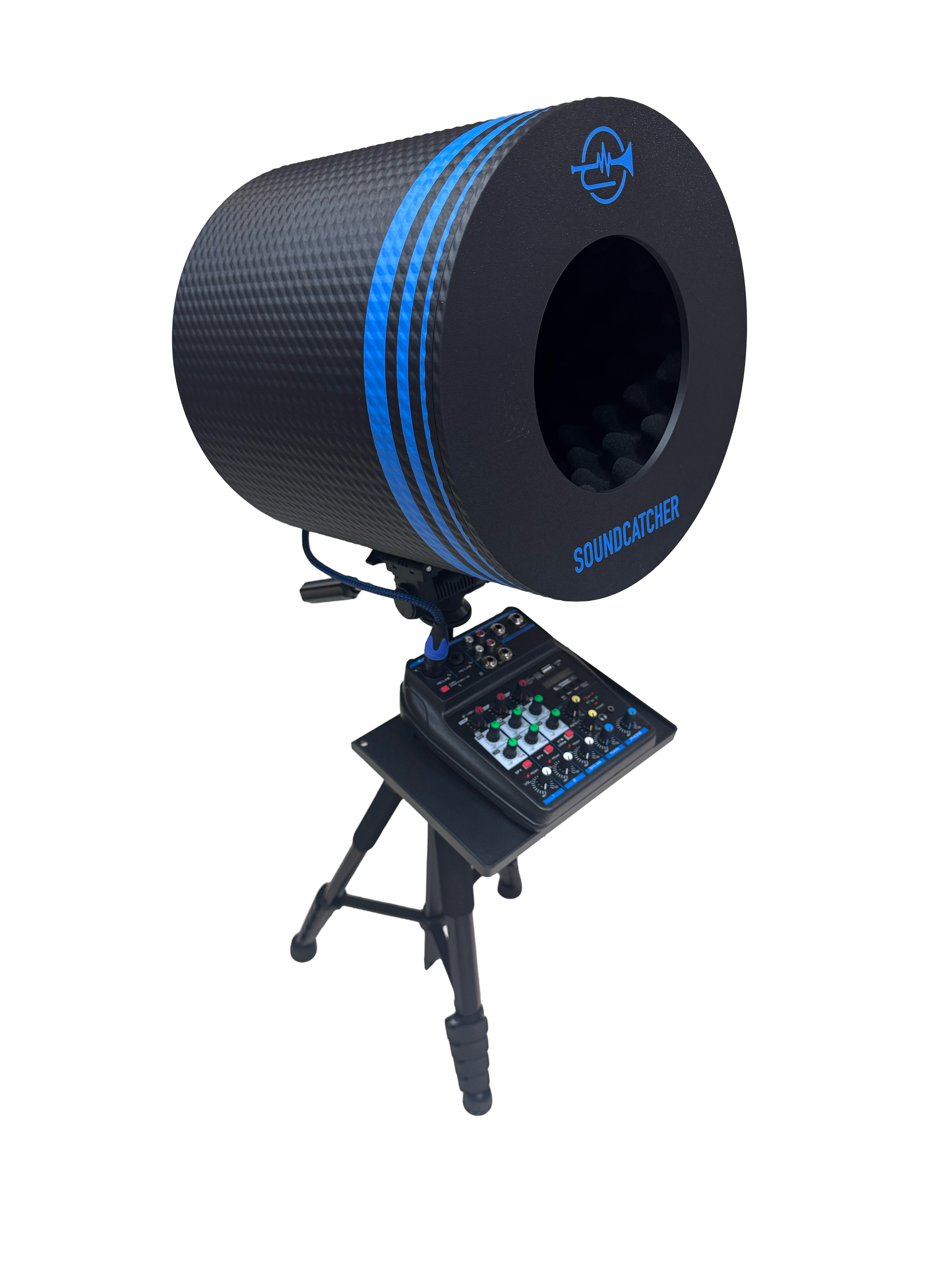

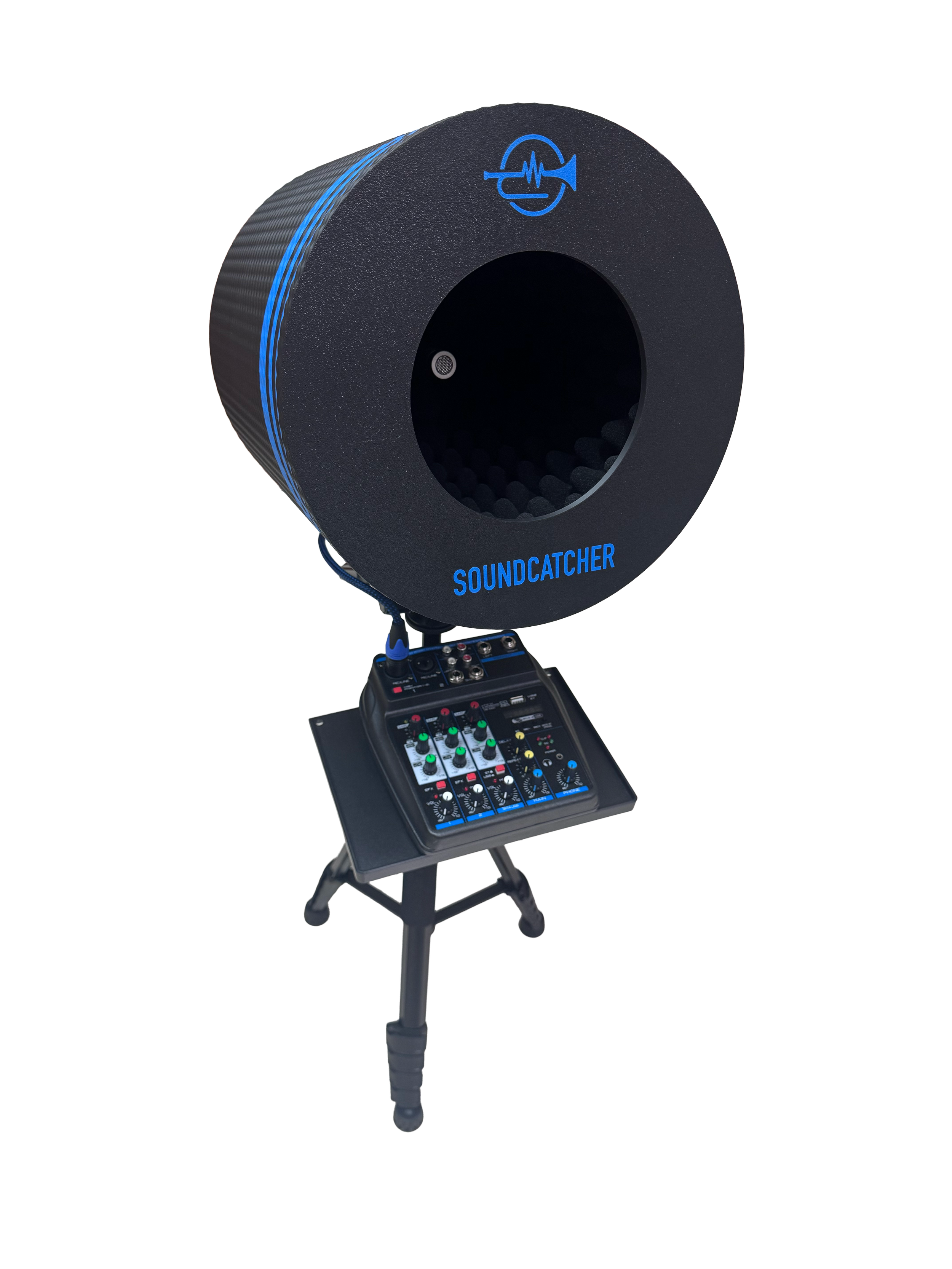

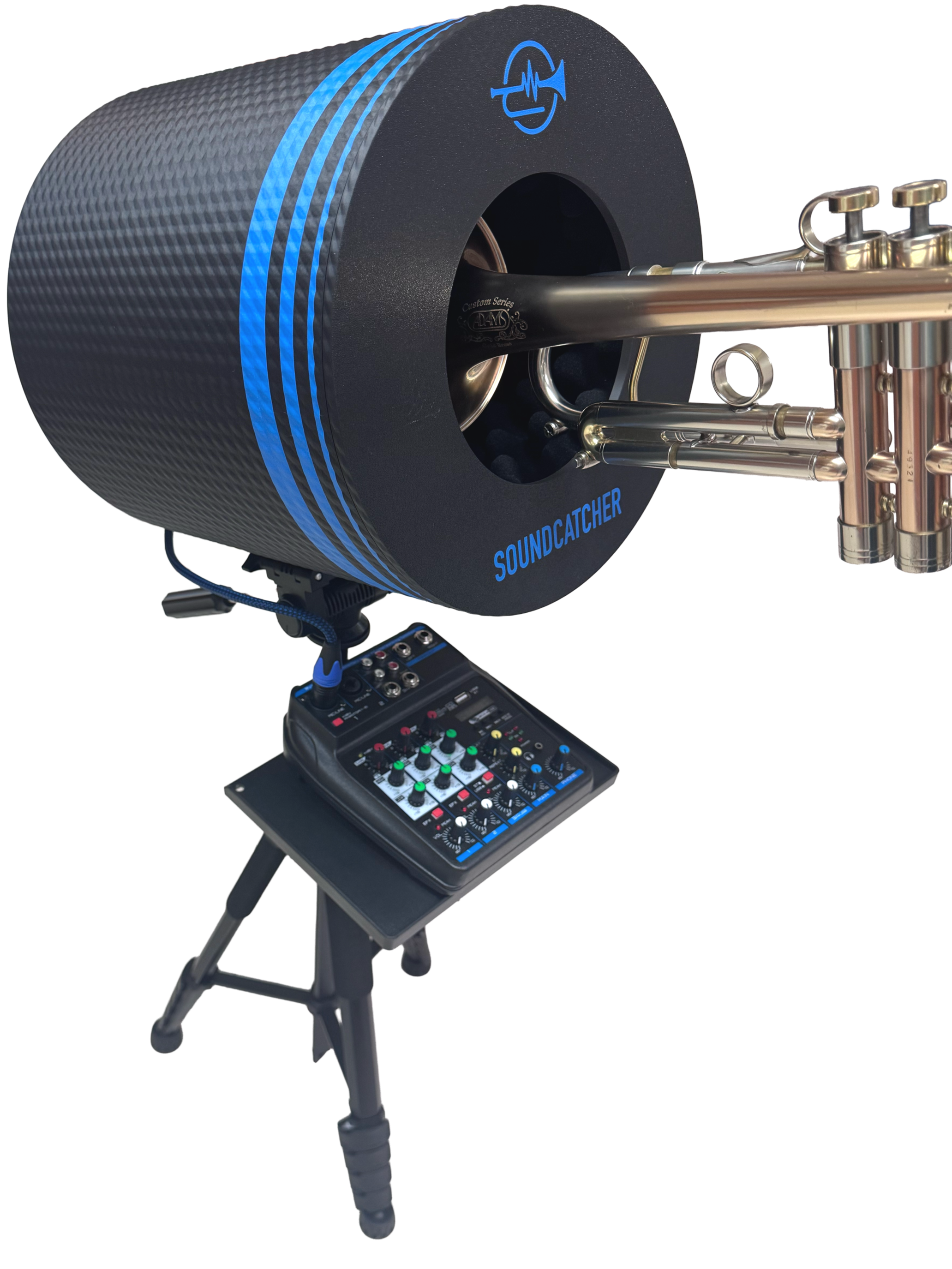

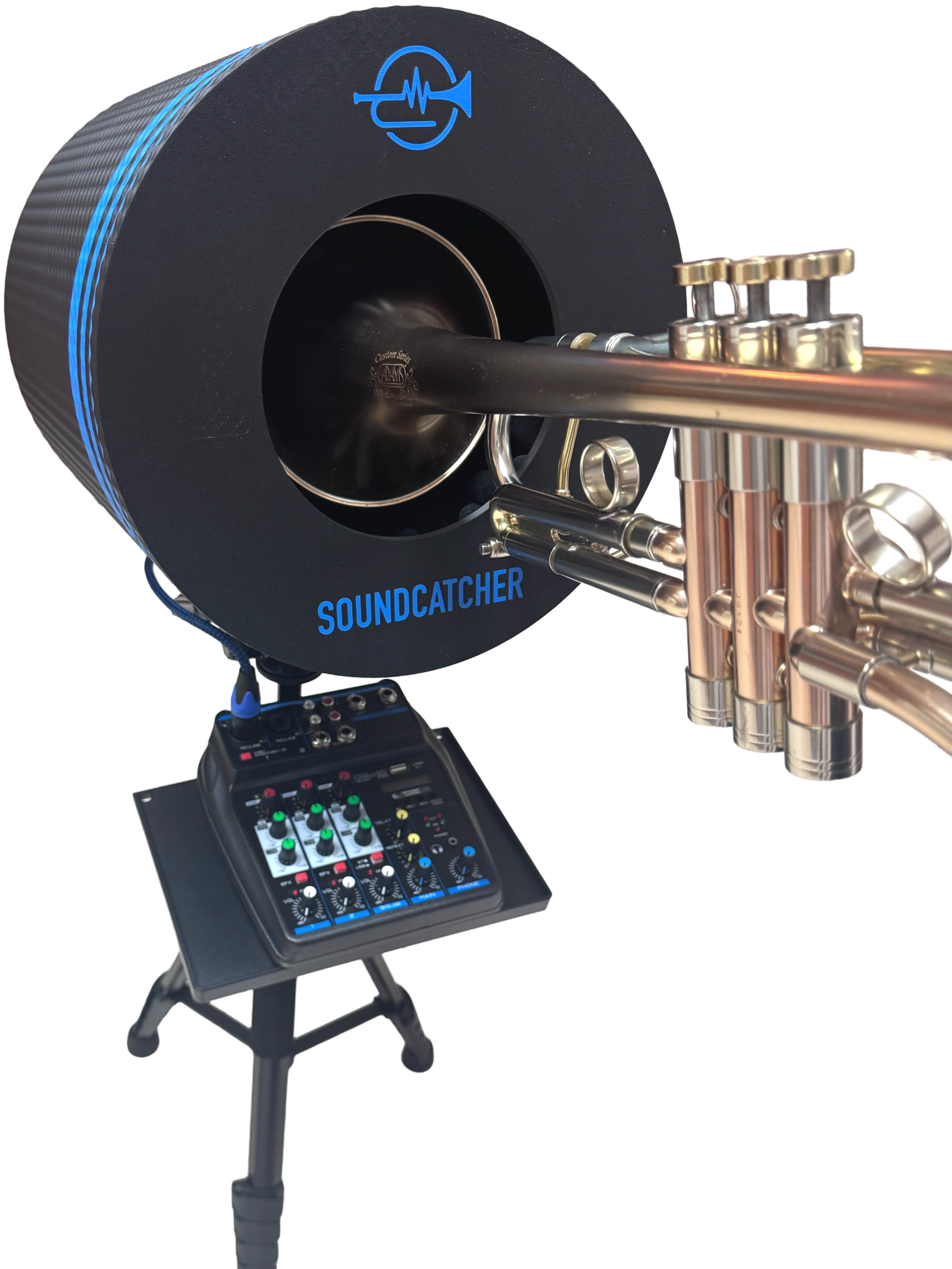

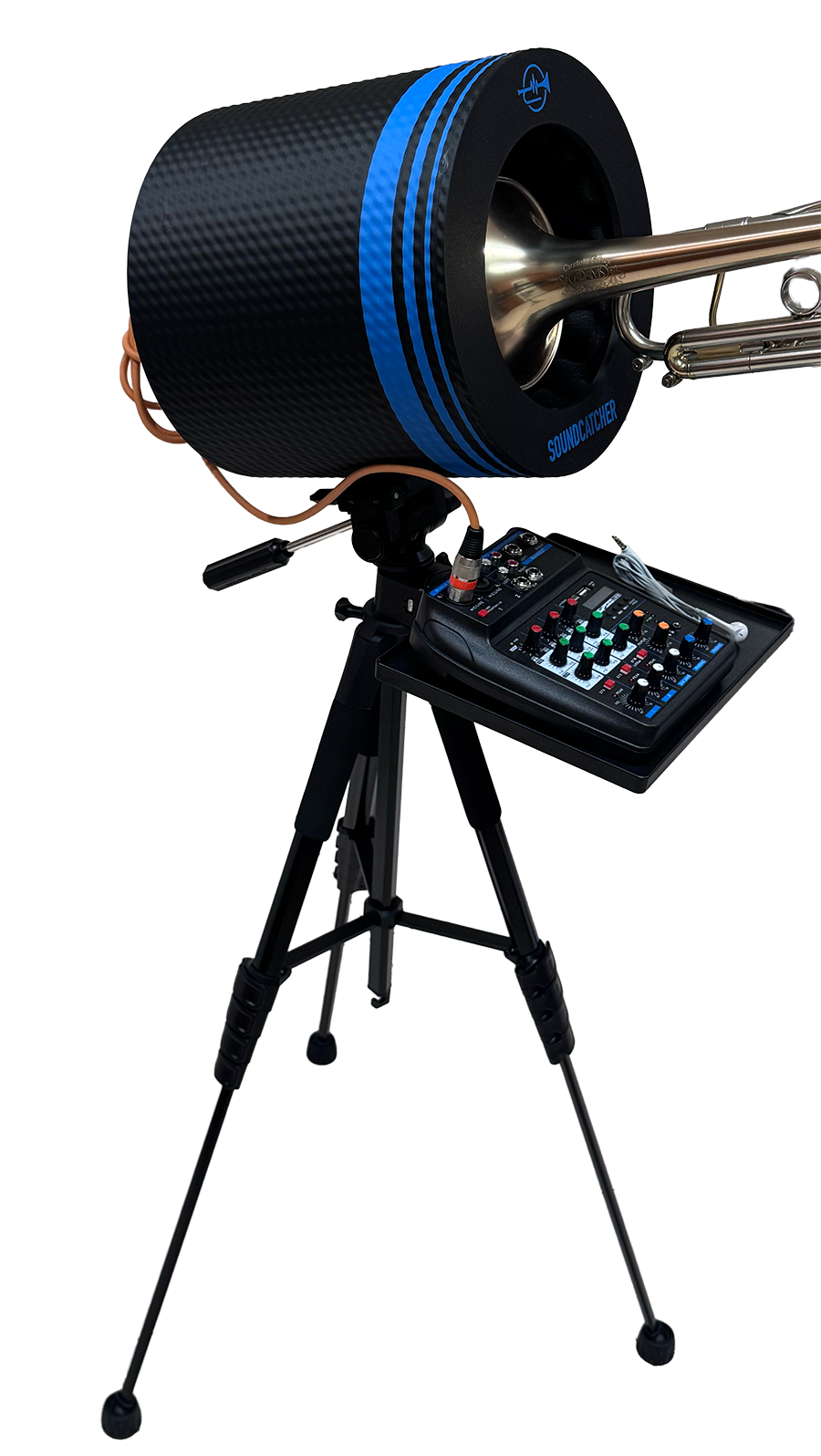

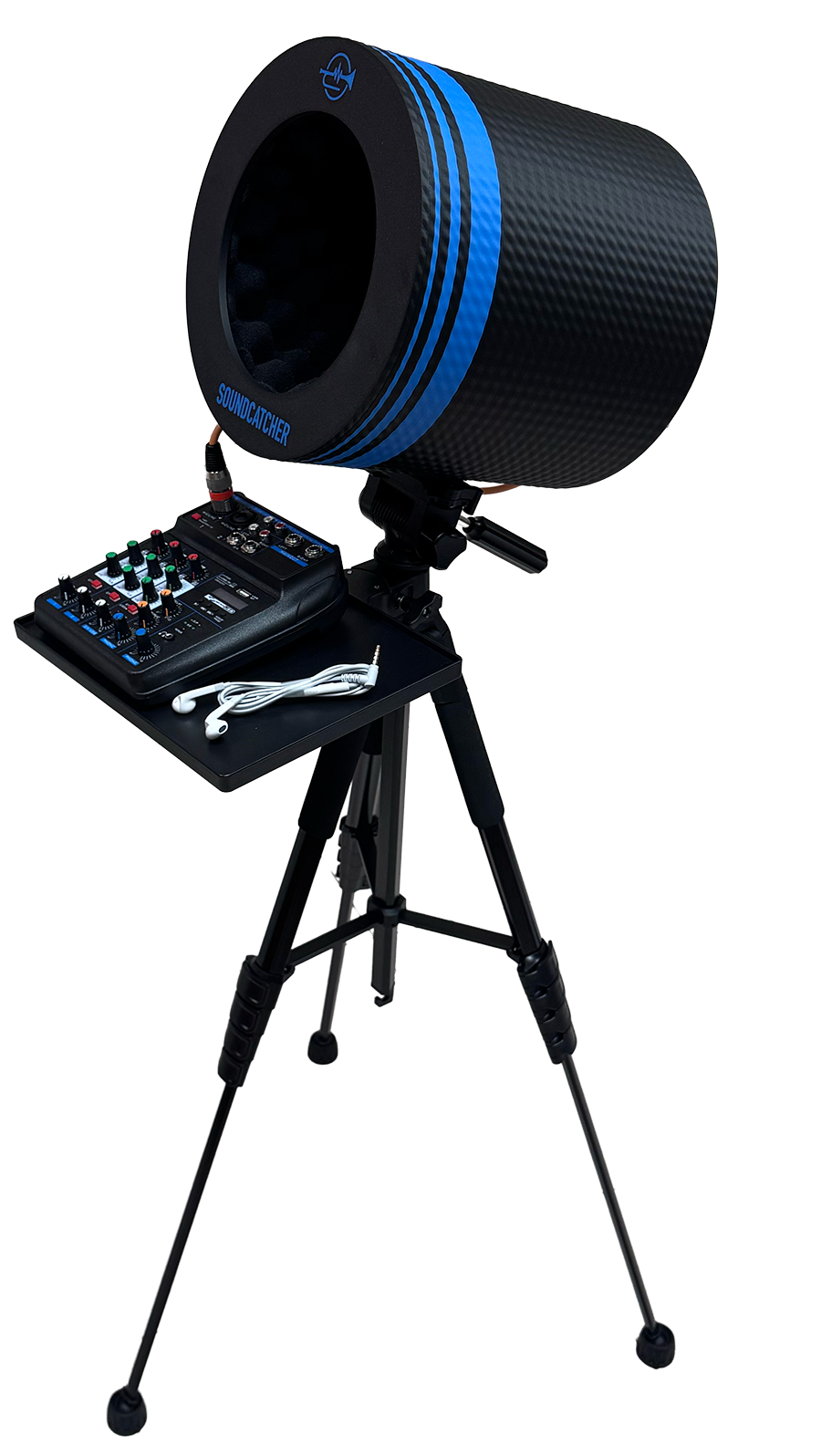

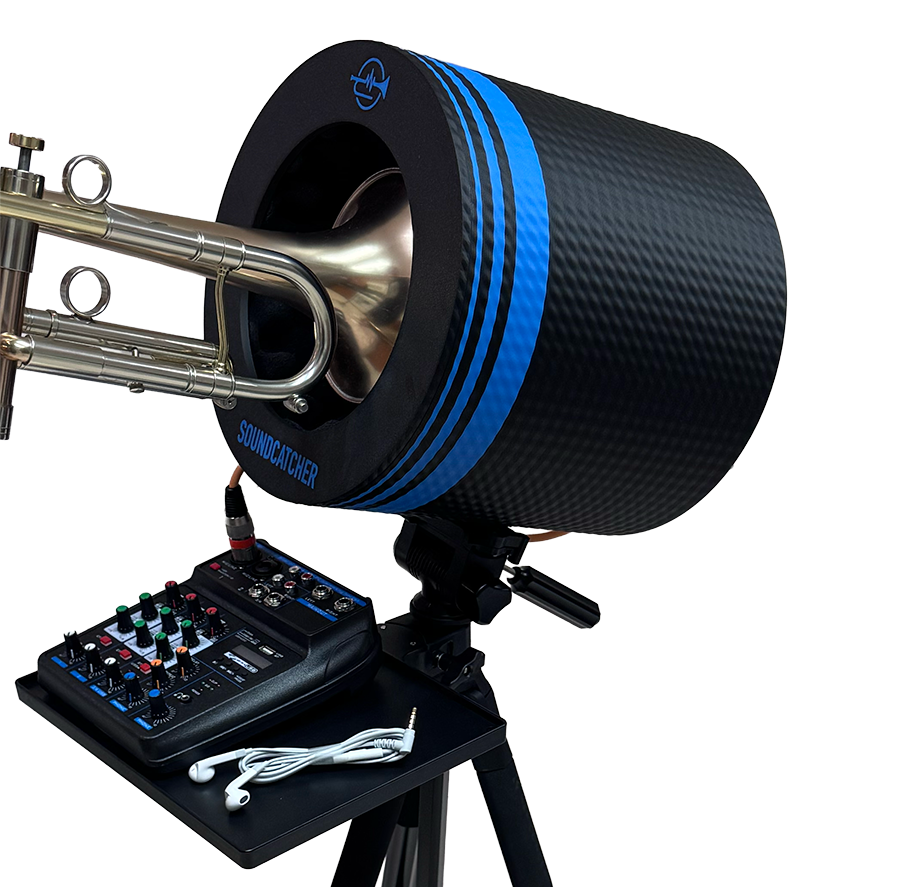

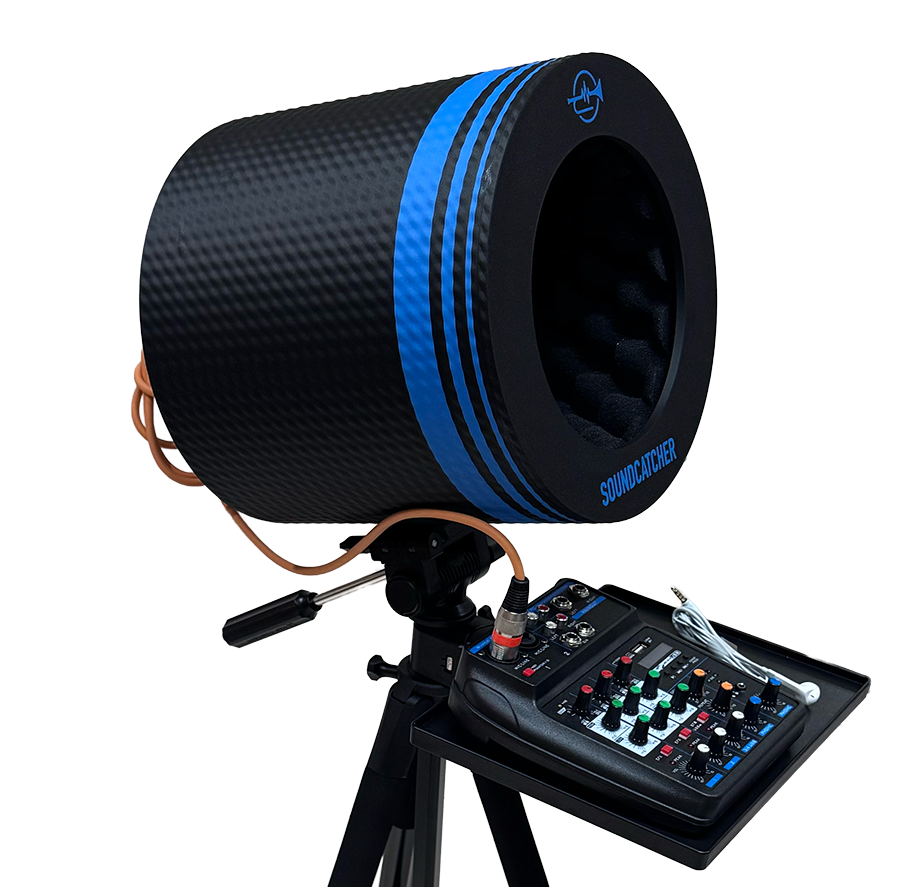

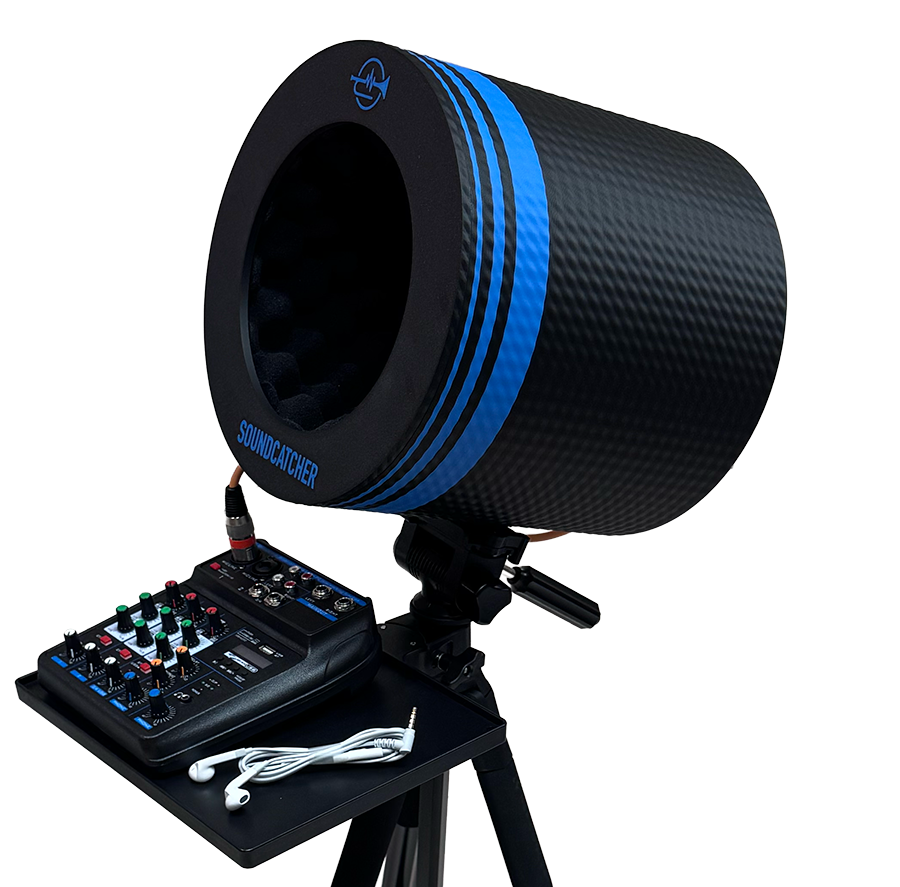

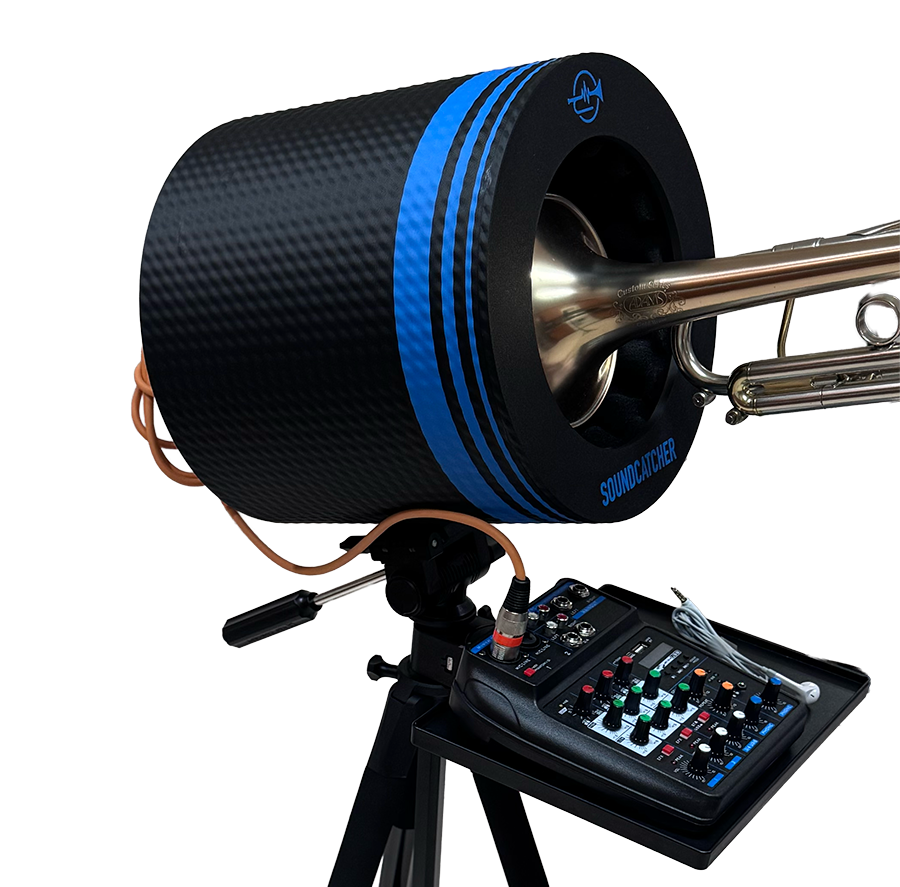

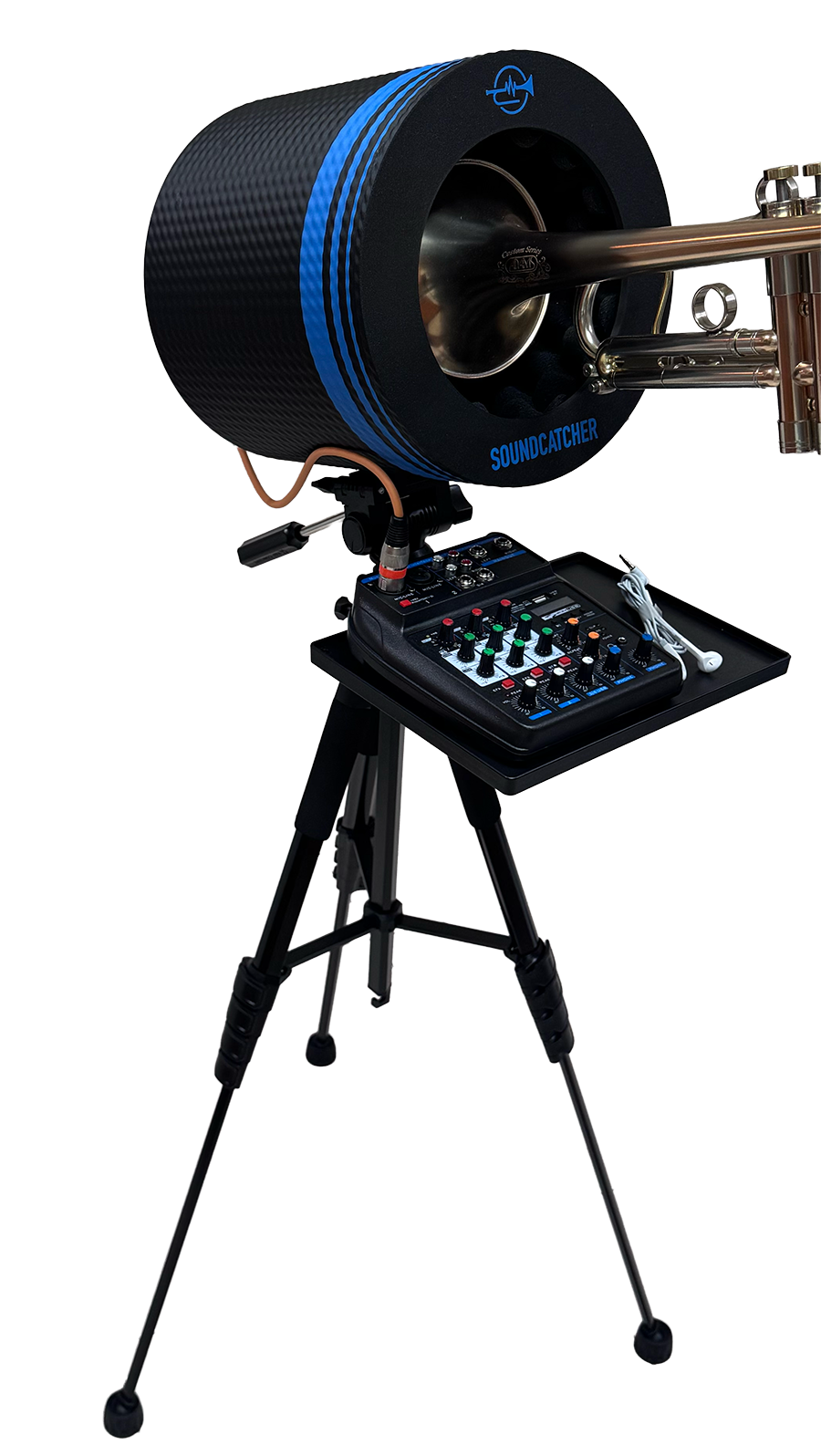

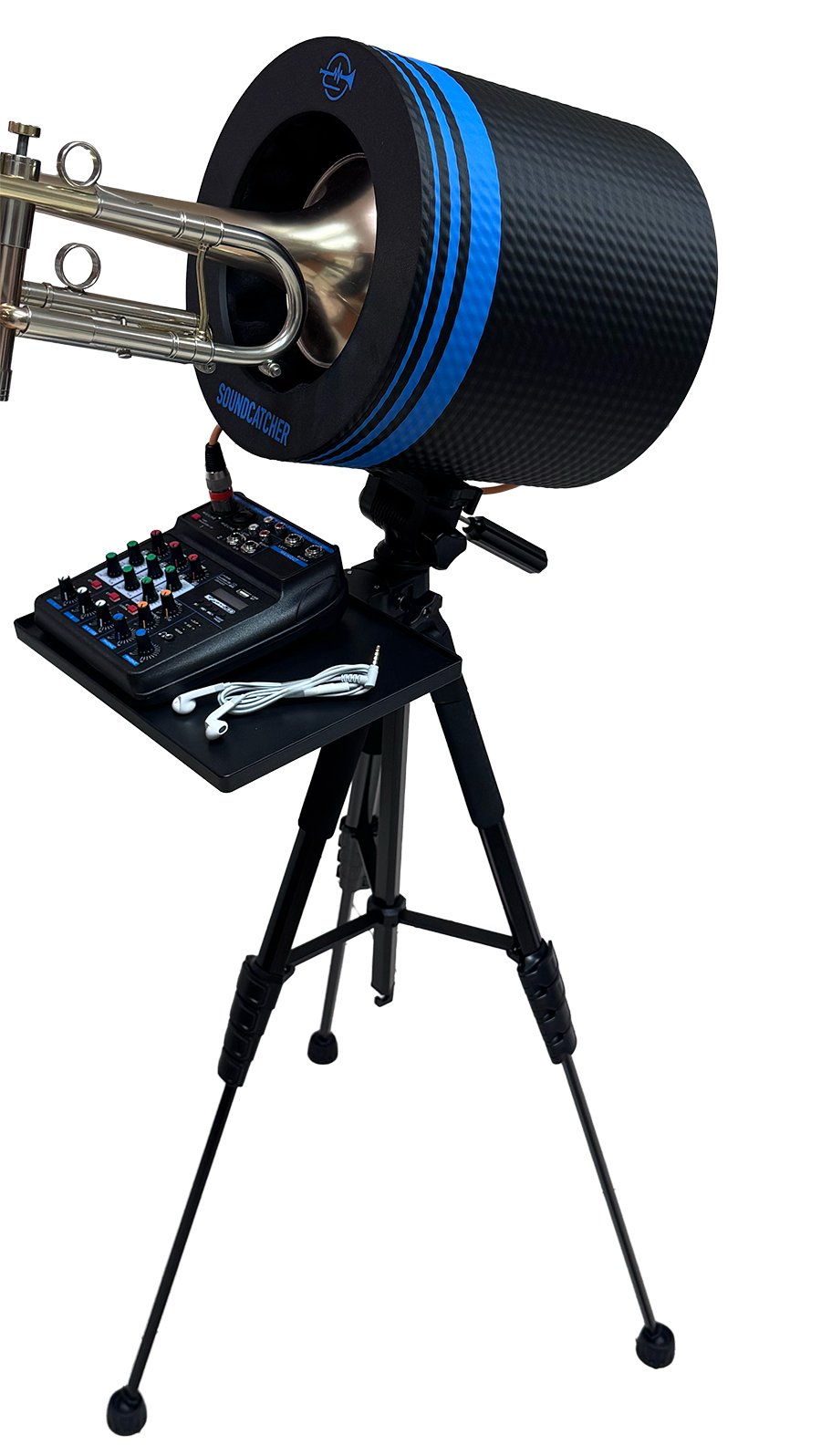

Reduce the volume of your trumpet or trombone by 87.5% so that you can practice when and where you need to. Unlike practice mutes that add back pressure and affect intonation, the SoundCatcher™ lets you blow freely and hear yourself. Play along with any audio source, too, including Bluetooth!
Models:

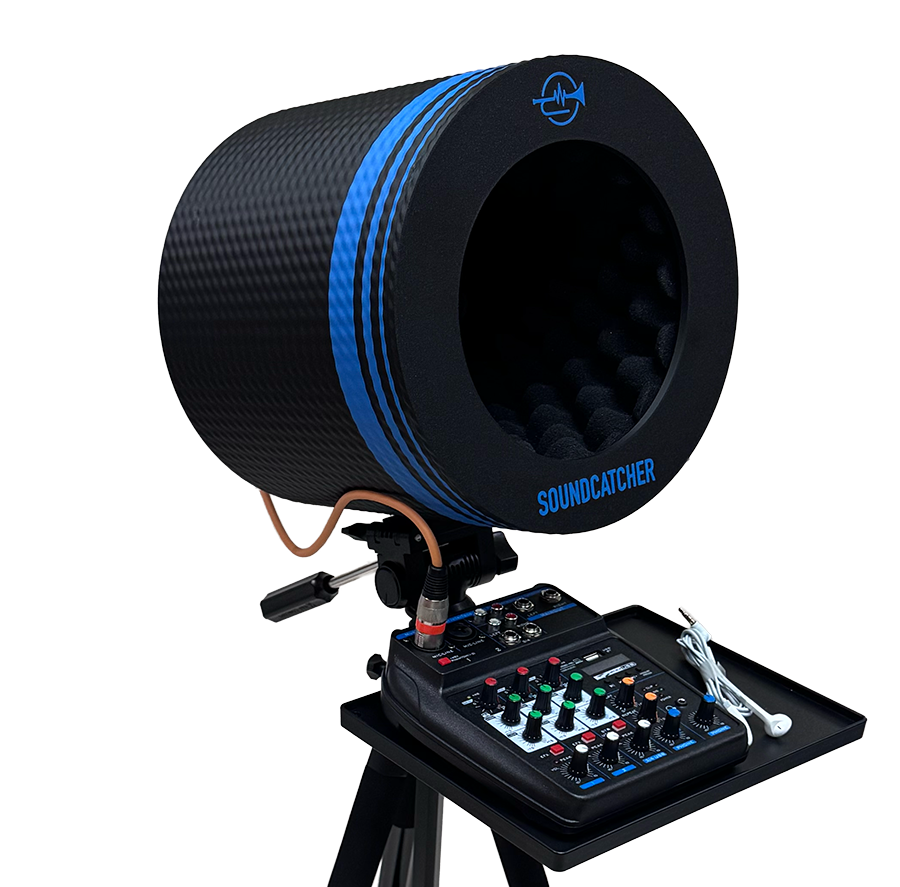

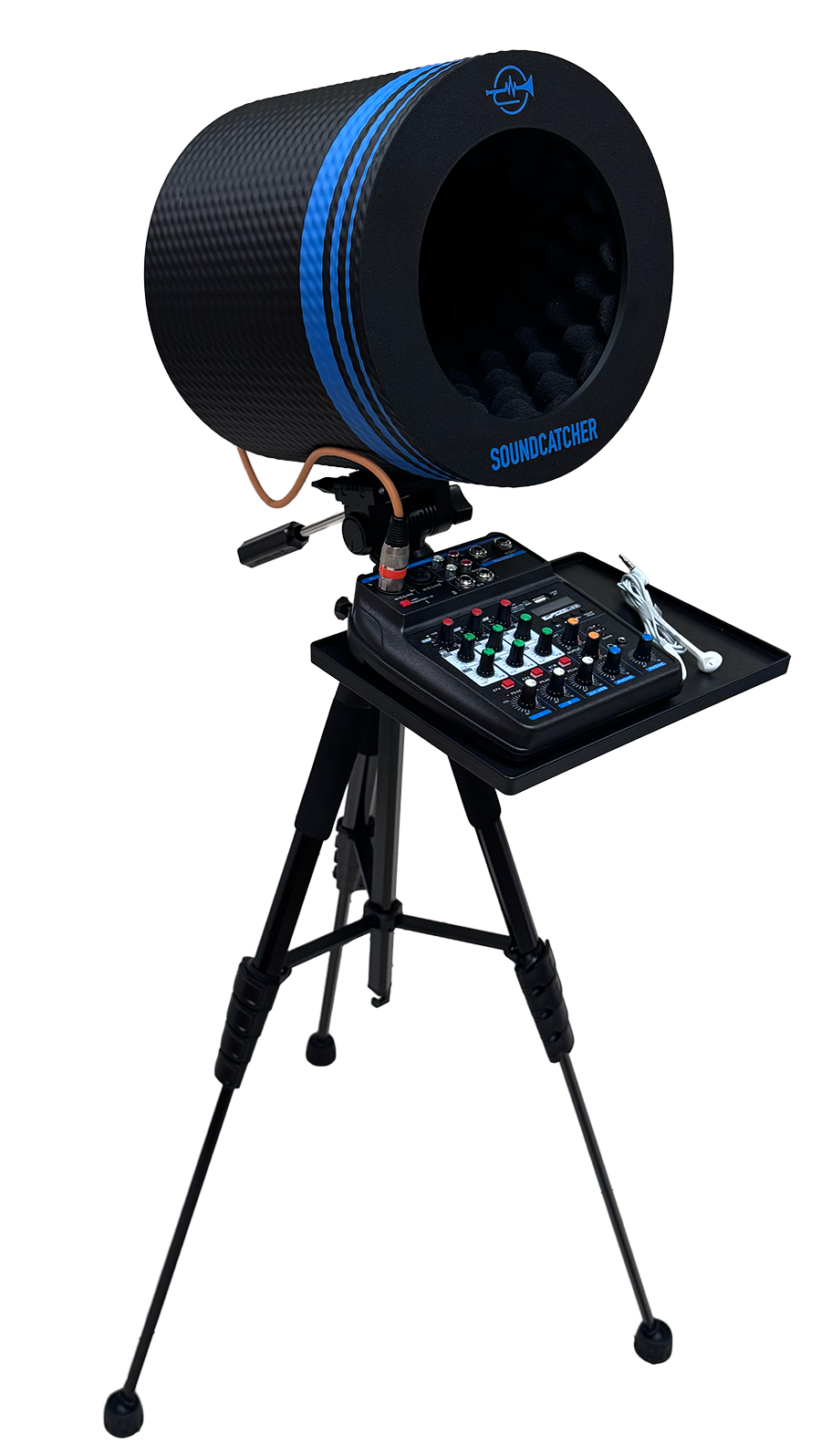

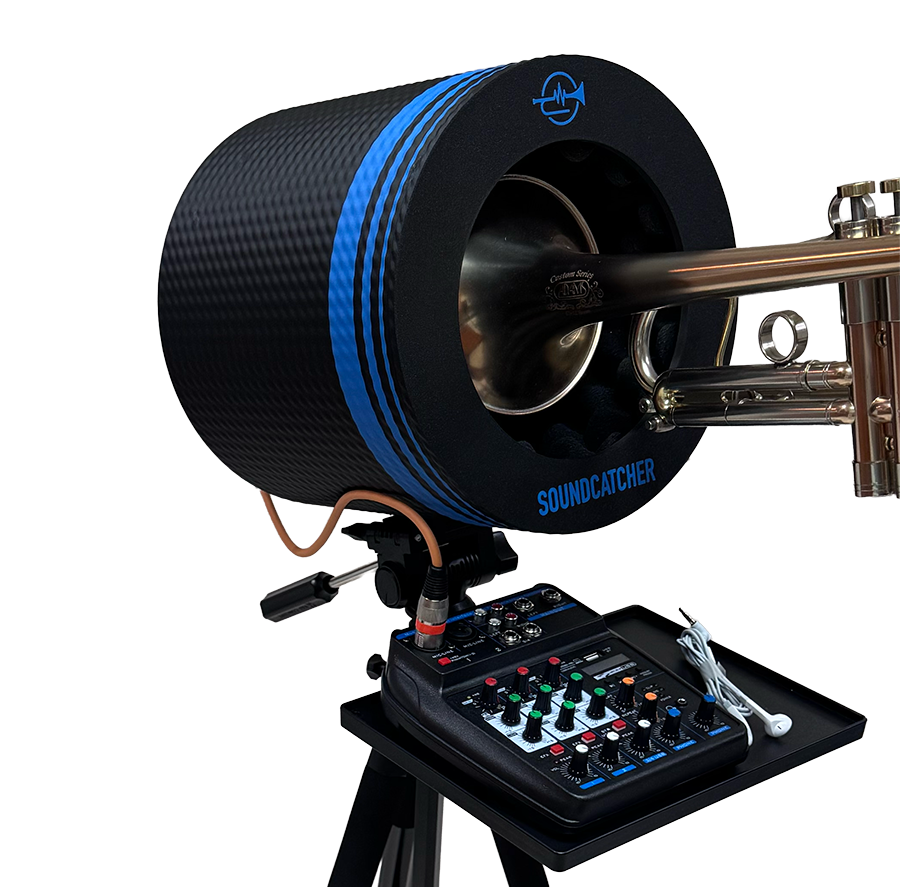

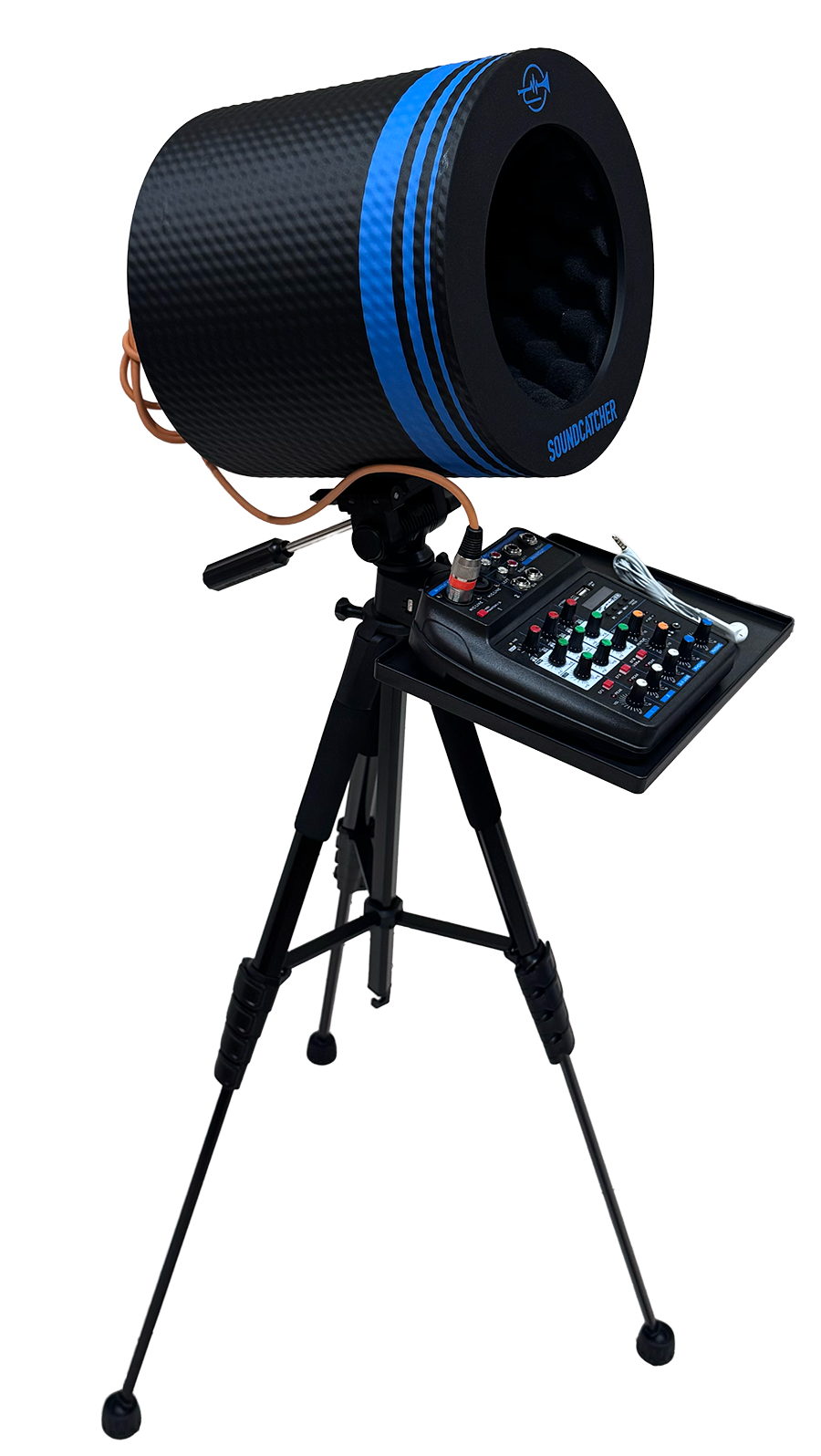

PRO - Includes SoundCatcher, stand, microphone, mic cable, mixing board with efx, mixing board stand, power supply, and usb cable.
PLUSA - Includes SoundCatcher, stand, microphone, mic cable, NO mixing board
PLUSB - Includes SoundCatcher, stand, mixing board with efx, mixing board stand, power supply, and usb cable. NO microphone
LITE - Includes SoundCatcher and stand - NO microphone, NO mixing board
Microphone Specifications:
Pencil condenser hypercardiod microphone
Frequency Response: 30Hz-18 kHz
Sensitivity:-38±3dB (0dB=1V/Pa at 1 kHz)
Output Impedance: 100Ω±30% (at 1 kHz)
Self Noise: 24dB A
Max. Input SPL: 135dB (at 1kHz≤1% T.H.D)
S/N Ratio: 70dB
Power requirement: 9v-52v Phantom Power
Mixing Board Specifications:
4-channel ultra low-noise, high headroom mixer
Inputs: 2x XLR Mic/Line, 2× RCA / 1/4” unbalanced input
Bluetooth input to wirelessly stream music to the mixer
+48v Phantom Power to XLR Inputs
EQ and onboard delay and reverb EFX
Unbalanced 1/4” output
Separate 1/8” headphone output
